#1500 JOHNSON POCKET DOOR FRAME

Category Pocket, Bifold & Sliding Door Hardware
53120007 53120007
53120007 53120007
Call for price
Starting from
CAD 0.01 / EA
/
Additional fees may apply
LIST PRICE CAD 0.01
%
- +
Check stock in other branches
Your Pick Up branch is Econo Lumber, Prince Albert
Compare
Own Brand

#1500 JOHNSON POCKET DOOR FRAME

Item Code: 53120007
Category Pocket, Bifold & Sliding Door Hardware
Warranty N

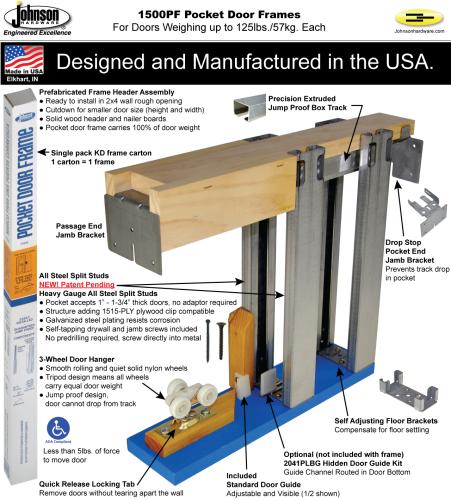

The 1500PF Series Standard-Duty Pocket Door Frame is designed to carry heavy standard size doors (up to 125lbs each) in standard  2 x 4 timber or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 1500PF frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1500PF is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.
  • 125lbs [57kg] Max. Weight Per Door



  • 36" [914mm] x 80" [2032mm] Max. Door Size



  • 1" [25mm] to 1-3/4" [35mm] Door Thickness



  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit



  • Soft-Close Compatible W/ Optional Soft-Close Kit

Specifications

Brand

Own Brand

Category

Pocket, Bifold & Sliding Door Hardware

The 1500PF Series Standard-Duty Pocket Door Frame is designed to carry heavy standard size doors (up to 125lbs each) in standard  2 x 4 timber or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 1500PF frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1500PF is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.
  • 125lbs [57kg] Max. Weight Per Door



  • 36" [914mm] x 80" [2032mm] Max. Door Size



  • 1" [25mm] to 1-3/4" [35mm] Door Thickness



  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit



  • Soft-Close Compatible W/ Optional Soft-Close Kit

Specifications

Brand

Own Brand

Category

Pocket, Bifold & Sliding Door Hardware
